Specification: Dimension: 16430mm x 3000mm x 2200mm Loading capacity(T): 60T Axle: 3 axle Tire: 12 units, 12R22.5 Suspension: Mechanical suspension Spring leaf: 120(W)mmx16(Thickness)mmx10 layers Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type) Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel. Bottom Platform: 5mm thick, checkered plate Hydraulic cylinder: 12KW diesel engine with hydraulic station ABS: Optional Valve: WABCO valve Light: LE......

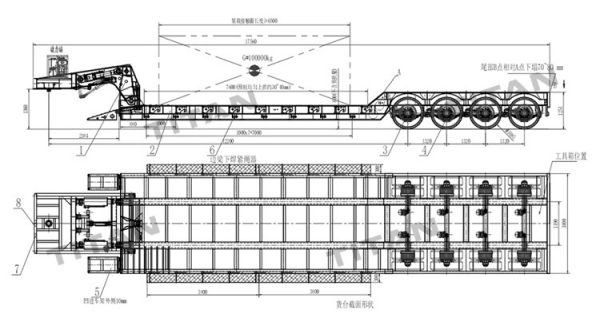

Drawing of 4 Axle 100T Hydraulic Detachable Gooseneck Trailer for Sale   Specification: Dimension: 17560mm x 3400mm x 2200mm Loading capacity(T): 100T Axle: 4 axle Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5 Suspension: Mechanical suspension Spring leaf: 120(W)mmx16(Thickness)mmx10 layers Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type) Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel. Bottom Platform: 5mm thick, checkered plate......

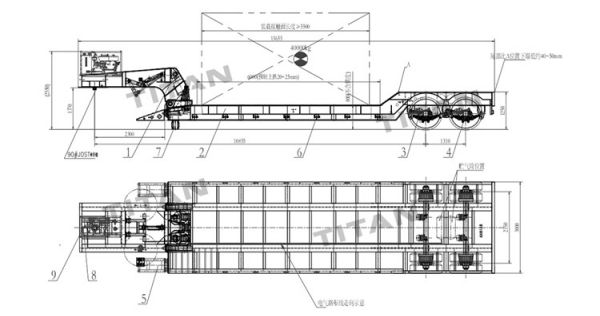

Drawing of 2 Axle 40 Ton Removable Gooseneck Lowboy Trailer for Sale   Specification: Dimension: 13655mm x 3000mm x 2550mm Loading capacity(T): 40T Axle: 2 axle, TITAN brand Tire: 8 units, 12R22.5 Suspension: Mechanical suspension Spring leaf: 120(W)mmx16(Thickness)mmx10 layers Kingpin: JOST brand Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel. Bottom Platform: 5mm thick, checkered plate Hydraulic cylinder: 12KW diesel engine with hydraulic ......

Drawing of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer   Specification: Dimension: 16400mm*2900+250*2mm*1730mm Loading capacity(T): 50 ton Goose neck: Folding gooseneck Axle: 2 axle, Fuwa Brand Tire: 8 units, 11.00R20 Suspension: Mechanical suspension Kingpin: JOST brand 2.0 or 3.5 inch Valve: WABCO valve Light: LED light   Drawing of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer   Details of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer for S......

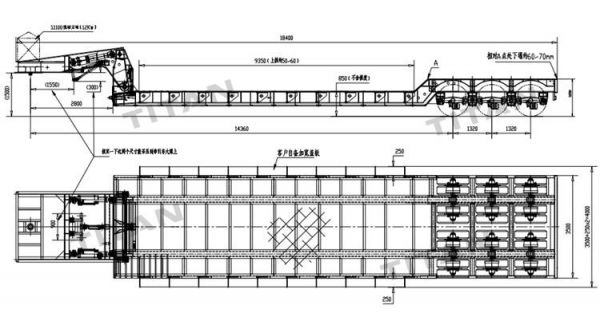

Drawing of 3 Line 6 Axle Removable Gooseneck Trailer   Specification: Dimension: 18400mm x 3000mm x 3400mm Loading capacity(T): 120T Axle: 3 line 6 axle Tire: 24 units, 12R22.5 Suspension: Mechanical suspension Spring leaf: 120(W)mmx16(Thickness)mmx10 layers Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type) Bottom Platform: 5mm thick, checkered plate Hydraulic cylinder: 12KW diesel engine with hydraulic station Valve: WABCO valve ABS: Optional Light: LED light (specially intended for oversea ......
