Drawing of Folding Neck Trailer

TITAN Vehicle | 2024-11-05

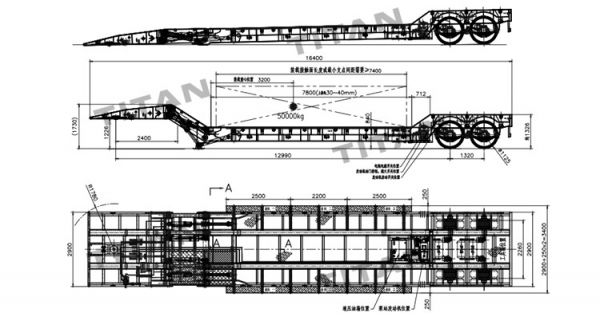

Drawing of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer   Specification: Dimension: 16400mm*2900+250*2mm*1730mm Loading capacity(T): 50 ton Goose neck: Folding gooseneck Axle: 2 axle, Fuwa Brand Tire: 8 units, 11.00R20 Suspension: Mechanical suspension Kingpin: JOST brand 2.0 or 3.5 inch Valve: WABCO valve Light: LED light   Drawing of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer   Details of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer for S......
TITAN Vehicle | 2024-11-05

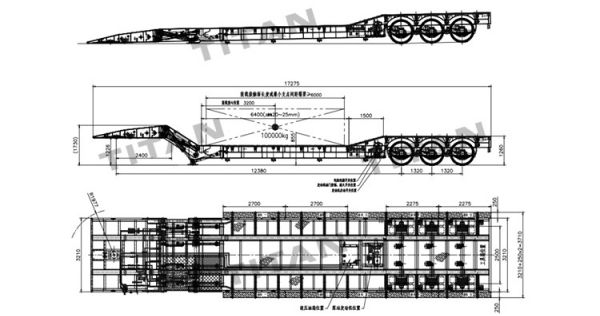

Drawing of 3 Axle 120 Ton Folding Gooseneck Lowboy Trailer   Specification: Dimension: 17275mm*3210+250*2mm*1730mm Loading capacity(T): 100-120 ton Goose neck: Folding gooseneck Axle: 3 axle, TITAN Brand Tire: 12 units, 12R22.5 Suspension: Mechanical suspension Kingpin: JOST brand 2.0 or 3.5 inch Valve: WABCO valve Light: LED light   Drawing of 3 Axle 120 Ton Folding Gooseneck Lowboy Trailer Drawing of 3 Axle 120 Ton Folding Gooseneck Lowboy Trailer Ho......
TITAN Vehicle | 2024-11-05

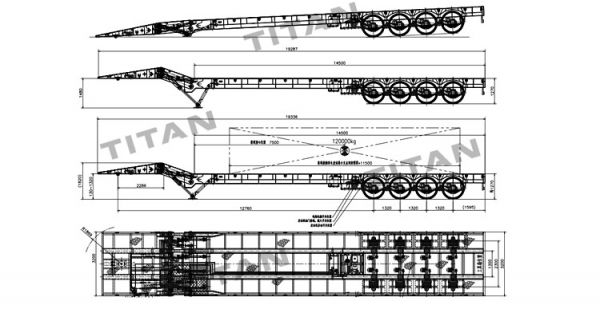

Drawing of 4 Axle 100 Ton Folding Neck Lowboy Trailer for Sale   Specification: Dimension: 20720mm x 3500mm x 1850mm Loading capacity: 100 tons Gooseneck: hydraulic folding gooseneck Side hook for chain or belt Checkered plate with 20 mm squre bar on ramps Folding gooseneck trailer for sale axle: 4 axle Tire: 16 units, 12R22.5 Suspension: Mechanical suspension Spring leaf: 120(W)mmx16(Thickness)mmx10 layers Kingpin: JOST brand Hydraulic cylinder: 12KW diesel engine with hydraulic station ABS: Option......
TITAN Vehicle | 2024-11-05

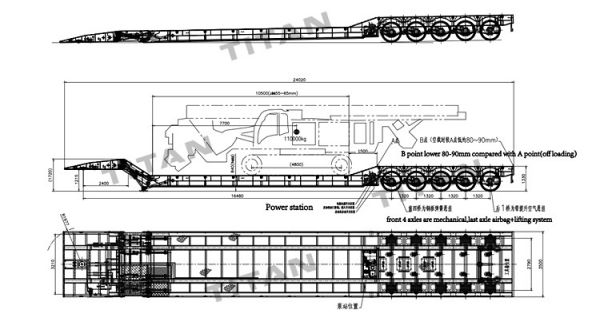

Drawing of 5 Axle 150 Ton Folding Gooseneck Low Bed Trailer   Specification: Dimension: 24000mm*3500mm*1720mm Loading capacity(T): 150 ton Goose neck: Folding gooseneck Axle: 5axle, TITAN Brand Tire: 20units, 12R22.5 Suspension: Mechanical suspension Kingpin: JOST brand 2.0 or 3.5 inch Valve: WABCO valve Light: LED light   Drawing of 5 Axle 150 Ton Folding Gooseneck Low Bed Trailer   Advantages: Folding gooseneck trailer for sale offer several adva......
