Drawing of 3 Line 6 Axle Removable Gooseneck Trailer
Dimension: 18400mm x 3000mm x 3400mm
Loading capacity(T): 120T
Axle: 3 line 6 axle
Tire: 24 units, 12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

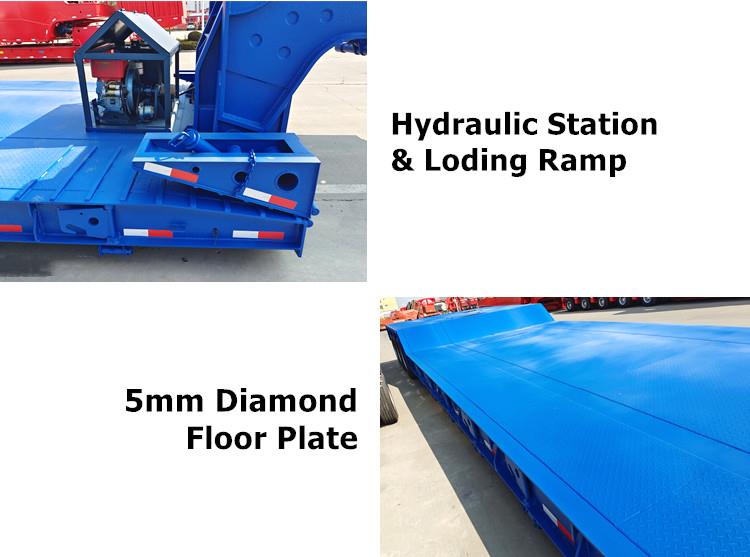

Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Valve: WABCO valve
ABS: Optional
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

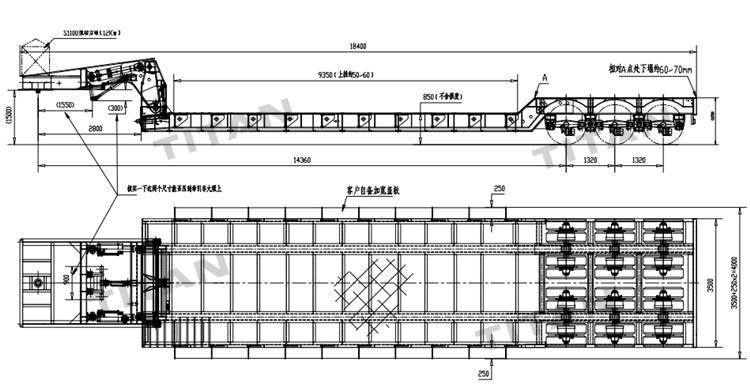

Drawing of 3 Line 6 Axle Removable Gooseneck Trailer
Drawing of 3 Line 6 Axle Removable Gooseneck Trailer
1. The main beam height is 550-580mm. That durable and stronger construction ensure the loading capacity.
2. The removable gooseneck trailer ramps are made by high strength steel, with high loading capacity, 3 line 6 axle removable gooseneck trailer will not happen to the deformation when carrying heavy equipment.
3. 250mm side swing bracket on both sides to increase the overall width of the removable gooseneck trailer.
