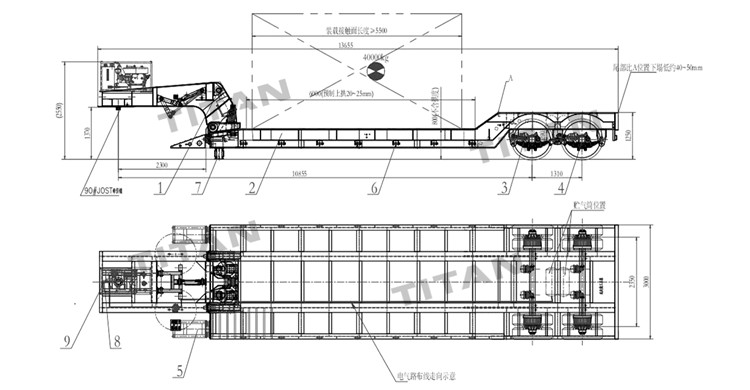

Drawing of 2 Axle 40 Ton Removable Gooseneck Lowboy Trailer

TITAN Vehicle | 2024-10-31

Drawing of 2 Axle 40 Ton Removable Gooseneck Lowboy Trailer for Sale

Drawing of 2 Axle 40 Ton Removable Gooseneck Lowboy Trailer for Sale



Specification:

Dimension: 13655mm x 3000mm x 2550mm

Loading capacity(T): 40T

Axle: 2 axle, TITAN brand

Tire: 8 units, 12R22.5

Suspension: Mechanical suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust



Drawing of 2 Axle 40 Ton Removable Gooseneck Lowboy Trailer for Sale

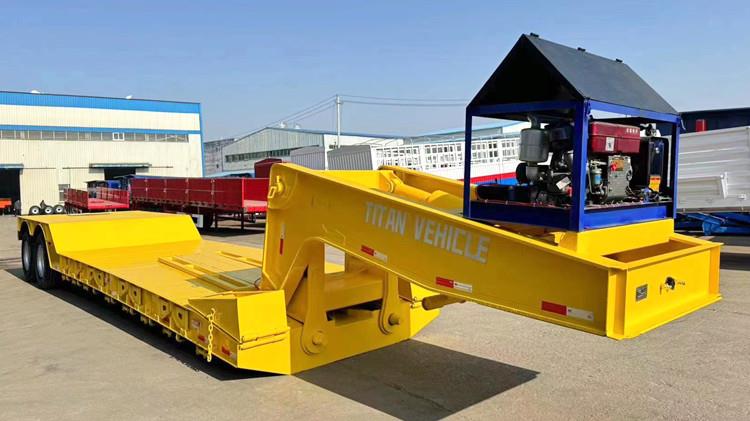

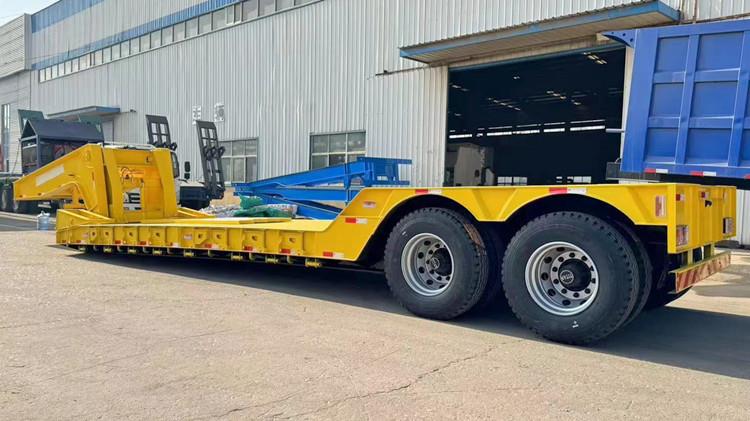

2 Axle 40 Ton Removable Gooseneck Lowboy Trailer for Sale

Drawing of 2 Axle 40 Ton Removable Gooseneck Lowboy Trailer for Sale

Drawing of 2 Axle 40 Ton Removable Gooseneck Lowboy Trailer for Sale

Drawing of 2 Axle 40 Ton Removable Gooseneck Lowboy Trailer for Sale



A removable gooseneck trailer for sale is commonly used to haul heavy equipment and machinery, such as excavators, bulldozers, and other large construction equipment. The lowboy gooseneck trailer for sale is perfect for hauling large equipment like this because they are usually tall and wide and would exceed standard legal height and weight restrictions. The detach trailer for sale uses a concave beam type. Removable gooseneck trailer can separate the gooseneck from the trailer, and achieve contact between the front end of the vehicle and the ground. After the cargo or equipment is loaded, the lowboy trailer for sale is restored to the original transportation state in time for transportation.

Common low bed trailer, should use the ramp behind the trailer for cargo loading. Yet, some large machinery and equipment, such as pile drivers, large rotary drills, large excavators, and large bulldozers, have very high centers of gravity due to their very high height. There is a great risk of later loading. Loading method for removable gooseneck trailer for sale: cargo is loaded from the front. Detachable gooseneck lowboy trailer price cargo table is very low, so the stability and security are very good.
