Drawing of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer

TITAN Vehicle | 2024-11-05

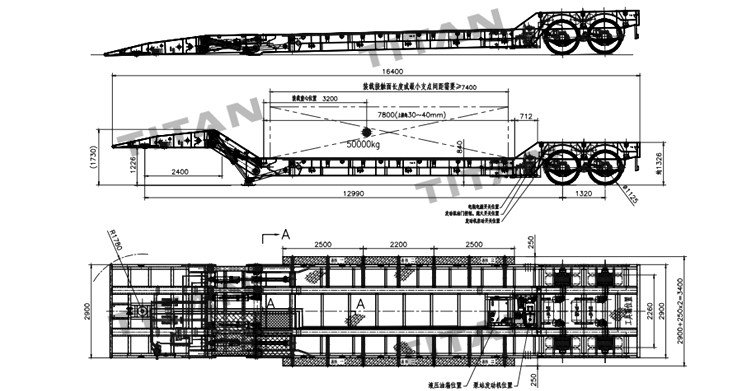

Drawing of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer

Drawing of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer



Specification:

Dimension: 16400mm*2900+250*2mm*1730mm

Loading capacity(T): 50 ton

Goose neck: Folding gooseneck

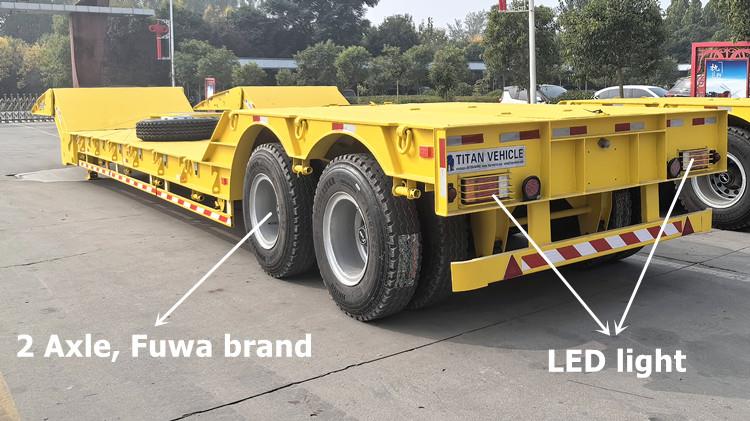

Axle: 2 axle, Fuwa Brand

Tire: 8 units, 11.00R20

Suspension: Mechanical suspension

Kingpin: JOST brand 2.0 or 3.5 inch

Valve: WABCO valve

Light: LED light



Drawing of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer

Drawing of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer

Drawing of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer



Details of 2 Axle 50 Ton Folding Gooseneck Lowboy Trailer for Sale:

1. Axle Configuration: The 50 ton folding gooseneck lowboy trailer for sale in Guatemala is equipped with 2 units 16 tons Fuwa axles, providing a balance between maneuverability and load-carrying capability. This configuration is suitable for carrying a variety of loads while ensuring stability on the road.

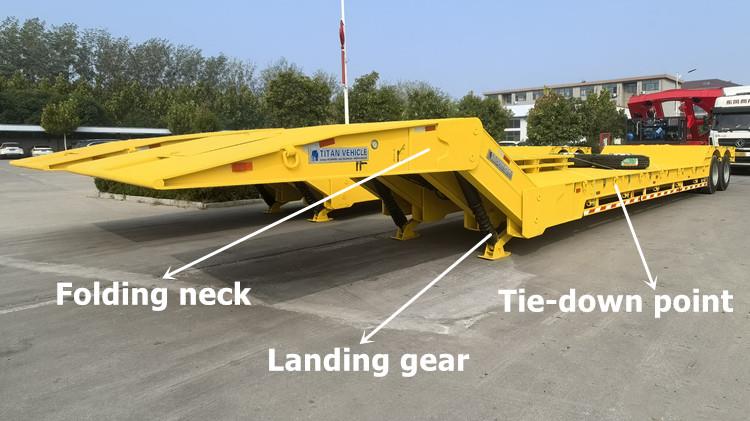

2. Folding Neck Design: The folding neck feature allows the front section of the 2 axle 50 ton folding gooseneck lowboy trailer for sale in Guatemala to fold down when not in use. This can facilitate easier loading and unloading of equipment, especially for taller or heavy loads, by lowering the overall height of the loading platform.

3. Deck Area: The trailer’s deck is often flat and reinforced to support heavy equipment such as construction machinery, vehicles, or containers. The design of 2 axle 50 ton folding gooseneck trailer for sale in Guatemala includes a non-slip surface for enhanced safety during loading and transport.
