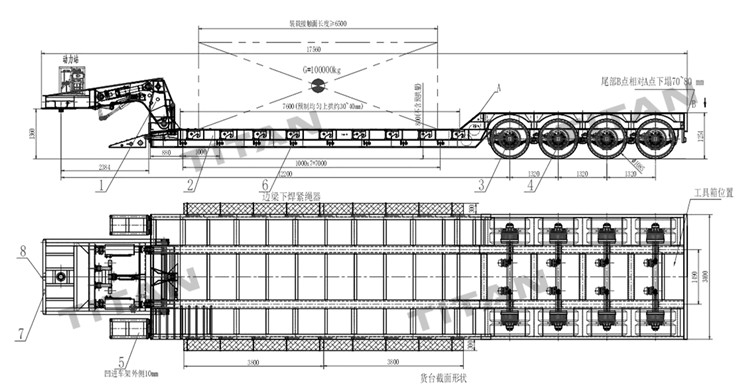

Drawing of 4 Axle 100T Hydraulic Detachable Gooseneck Trailer for Sale
Dimension: 17560mm x 3400mm x 2200mm
Loading capacity(T): 100T
Axle: 4 axle
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Drawing of 4 Axle 100T Hydraulic Detachable Gooseneck Trailer for Sale
Drawing of 4 Axle 100T Hydraulic Detachable Gooseneck Trailer for Sale

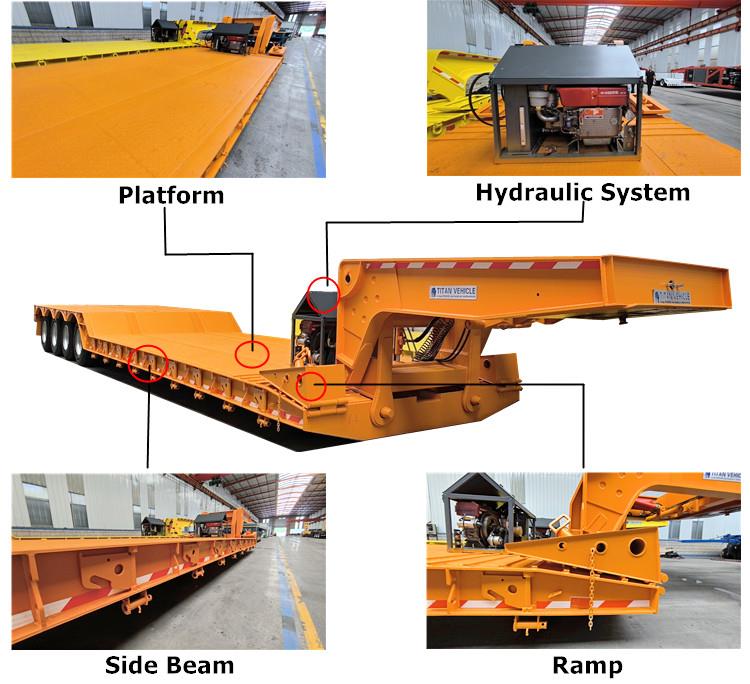

The gooseneck of the detachable gooseneck trailer usually consists of four parts: the traction system, the force transmission system, the alignment adjustment system and the locking system. The locking methods of the detachable gooseneck and the front end of the detachable gooseneck semi trailer include traction saddle locking, pin locking and cam locking, etc.; the horizontal alignment of the gooseneck and the front end of the semi-trailer includes pin alignment, guide groove alignment, and vertical alignment with mechanical adjustment, Winch adjustment, air pressure adjustment and hydraulic adjustment. Detachable gooseneck and semi-trailer The front-end load transfer methods mainly include hook, orifice and orange. There are two locking control methods: manual control and pneumatic control.
The mechanically detachable gooseneck is a whole, and there is no relative movement in the fixed connection between the various parts.
The gooseneck itself does not have a height adjustment function, and when it is connected with a semi-trailer, it relies on a modified tractor frame to provide the required slope adjustment. The disassembly and assembly process of the gooseneck of the mechanically detachable gooseneck low flatbed semi-trailer often requires moving the tractor back and forth several times to complete, so it is not suitable for short-distance transportation.
