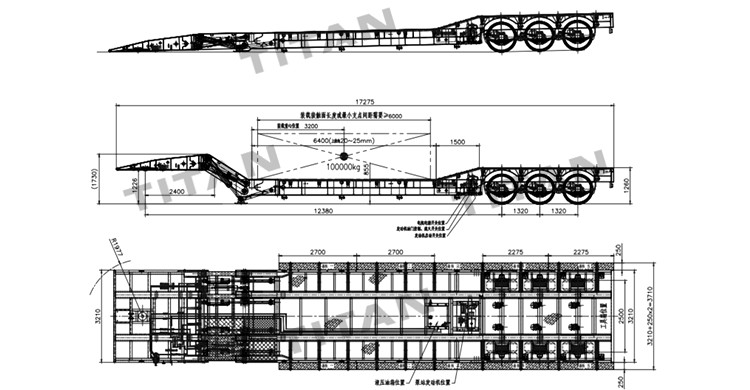

Drawing of 3 Axle 120 Ton Folding Gooseneck Lowboy Trailer
Dimension: 17275mm*3210+250*2mm*1730mm
Loading capacity(T): 100-120 ton
Goose neck: Folding gooseneck

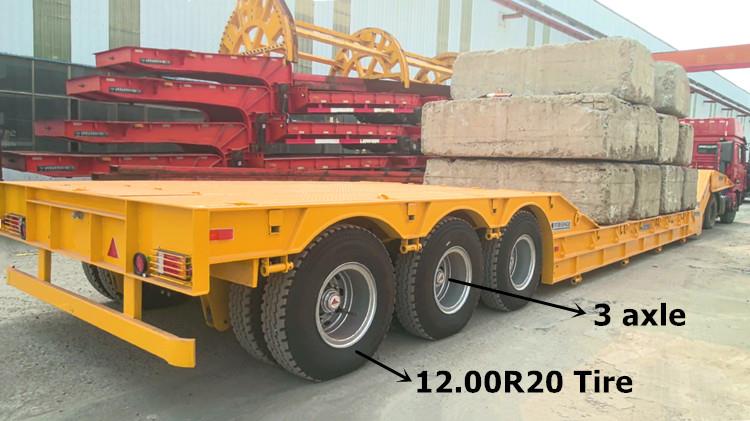

Axle: 3 axle, TITAN Brand
Tire: 12 units, 12R22.5
Suspension: Mechanical suspension
Kingpin: JOST brand 2.0 or 3.5 inch
Valve: WABCO valve
Light: LED light
Drawing of 3 Axle 120 Ton Folding Gooseneck Lowboy Trailer
Drawing of 3 Axle 120 Ton Folding Gooseneck Lowboy Trailer

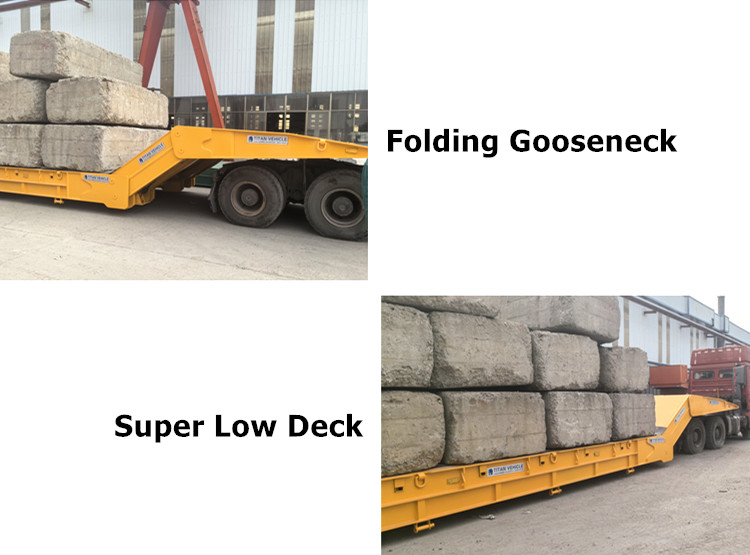

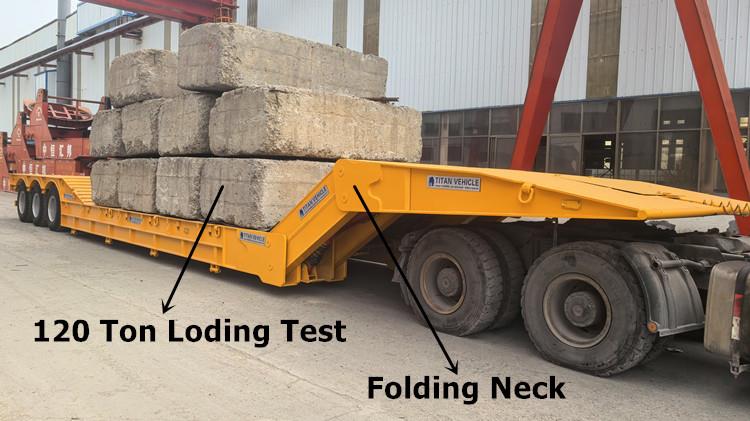

1. Gooseneck Design: The gooseneck is designed to fold at a pivot point, which is typically located at or near the front of the load king folding gooseneck trailer deck. This feature allows the neck to lower to the ground.
2. Folding Mechanism: 3 axle 120 ton folding gooseneck lowboy trailer for sale use a hydraulic system to easily raise and lower the neck. In hydraulic models, a control valve manages the flow of hydraulic fluid, allowing the operator to control the folding action.
3. Loading and Unloading: When unloading, the operator lowers the gooseneck to provide a ramp-like effect, allowing equipment or cargo to be driven on or off the load king folding gooseneck trailer more easily. Once the gooseneck is lowered, the load king folding gooseneck trailer typically has stabilizing legs or supports that can be deployed to ensure the trailer remains steady during loading/unloading.
