The self propelled modular transporter for sale has many advantages such as adjustable cargo platform height, uniform axle load, small turning radius, flexible steering method, and variable load tonnage.
The spmt trailer drives into the lower bottom surface of the load by lowering the height of the whole spmt trailer, and the hydraulic balancing system lifts the load and transfers it to the designated location. The whole process does not require the assistance of other lifting equipment. When driving on uphill and downhill roads, the spmt trailer body can be adjusted to maintain a horizontal position to ensure the smooth transportation of goods.
The self propelled modular transporter for sale has a longitudinal splicing function. Users can combine according to the different weights, lengths and widths of the goods to meet the requirements of cargo transportation, while reducing operating costs and shortening transportation cycles. This series of spmt trailer can also be used as a transport vehicle for transporting large, difficult-to-disassemble and overlong goods in industries such as power stations, mining and metallurgy, chemicals, construction and earthwork.

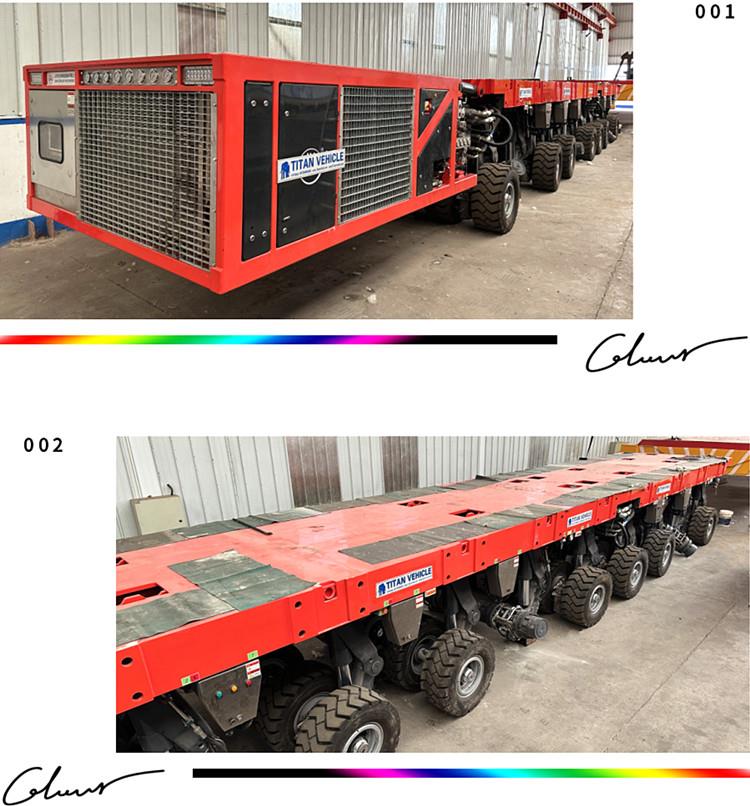

1. PPU: PPU consists of engine, air filter, muffler, radiator, intercooler, oil cooler, variable pump, fuel tank, hydraulic oil tank, battery and other components. It provides hydraulic power and power supply for self propelled modular transporter for sale. PPU is connected to platform truck through articulation and lifting cylinder. PPU can manually or remotely operate the hydraulic grouping on the self propelled modular transporter for sale to perform precise lifting and lowering operations on the cargo.

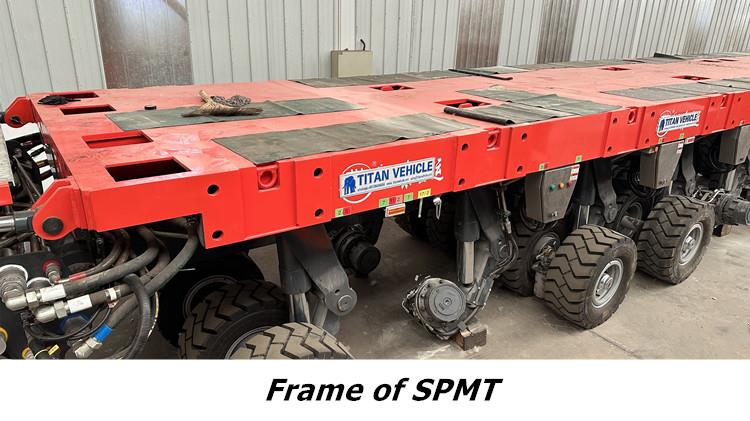

2. Frame of SPMT: The body of the self propelled modular transporter for sale is mainly composed of triangular main longitudinal beams, diagonal braces, suspension supports, box-type sub-beams, end beams, longitudinal plugs and other components. It is the main structure of the self propelled modular transporter for sale. The main load-bearing structure of the vehicle body is welded with Q690 high-strength steel, which has the advantages of low overall height, high rigidity and compact space structure.
3. Hydraulic suspension: The hydraulic suspension system consists of rotating brackets, lifting arms, lifting cylinders and other components. The hydraulic suspension system is a mechanism for adjusting the height of the spmt trailer body, transferring the load borne by the vehicle body to the ground through the axles and tires. When the spmt trailer is driving on a slope, the hydraulic suspension system can be used to adjust the level of the spmt trailer body, the spmt trailer body support platform can be raised and lowered, and some large goods can be loaded and unloaded by themselves. The hydraulic suspension system can be used in conjunction with the anti-drop pin to lift the wheel set and tires separately, which is convenient for maintenance and tire replacement.
1. Versatility: SPMT trailer can handle a wide range of loads, from large industrial equipment to wind turbine components, due to their modular design.
2. Maneuverability: Self propelled modular transporter for sale can move in tight spaces and navigate difficult terrains, thanks to their ability to steer in multiple directions.
3. Weight Distribution: SPMT trailer distribute the weight of the load evenly, reducing the risk of ground damage and enabling the transportation of extremely heavy items.
4. Self-Propulsion: Since they are self-propelled, SPMT trailer for sale do not require a separate towing vehicle, allowing for easier operation and increased efficiency.
5. Advanced Technology: Self propelled modular transporter for sale is equipped with advanced control systems that improve safety and accuracy during transport.
6. Improved Efficiency: The ability to combine multiple units for larger loads can streamline transportation processes, reducing time and cost.
