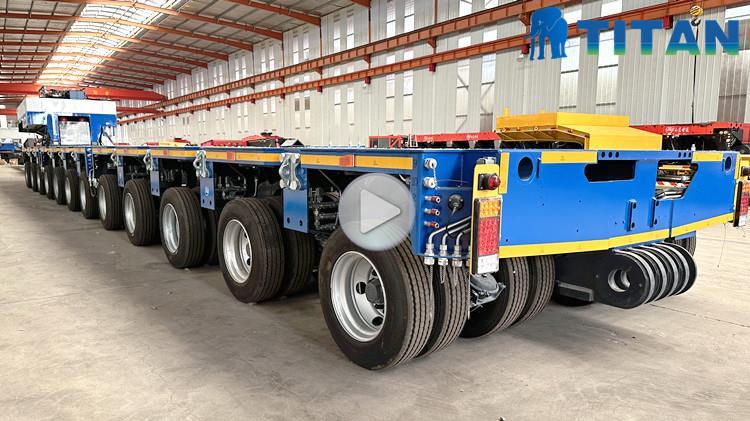

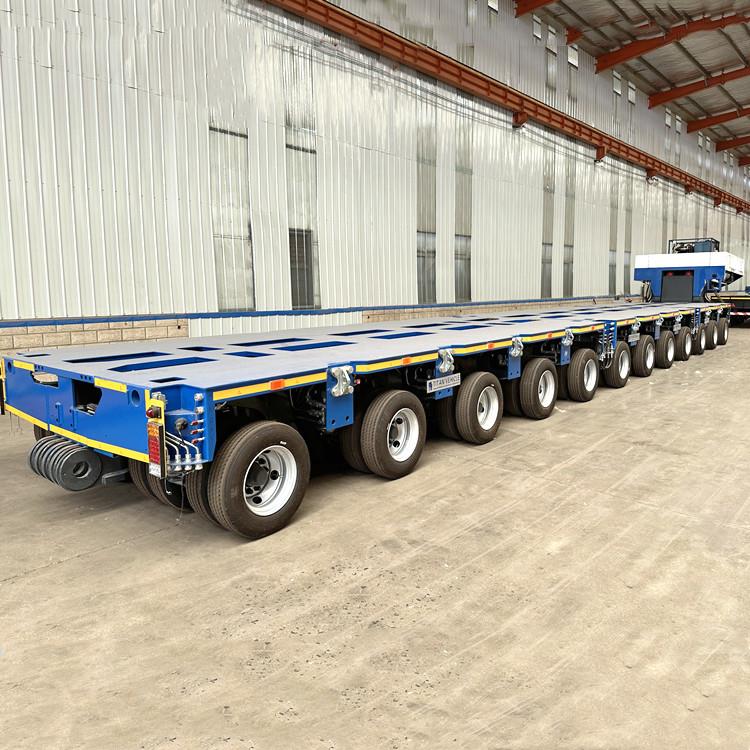

12 hydraulic axle modular semi trailer engineered for transporting oversized loads, such as heavy equipment, machinery, or large structures. 12 hydraulic axle modular semi trailer is composed of multiple sections that can be added or removed based on load size, allowing for customizable lengths and configurations.
Low-profile design of 12 hydraulic axle modular semi trailer enables easier loading and unloading of oversized cargo. Wide stance and multiple axles of 12 hydraulic axle modular semi trailer enhance stability during transport, reducing the risk of accidents.
Details of 12 hydraulic axle modular semi trailer:

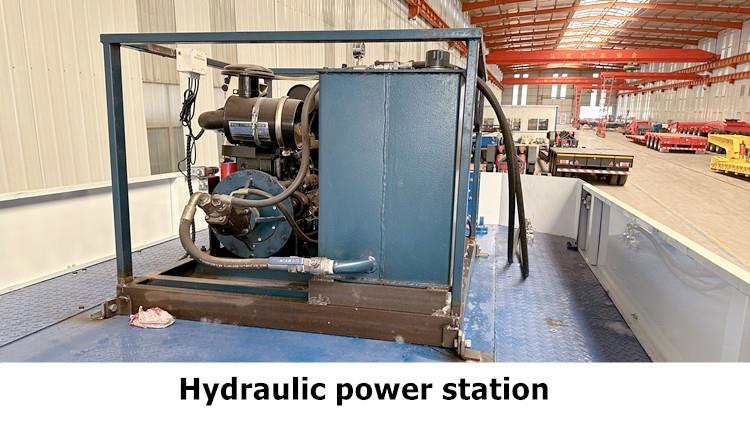

1. Hydraulic power station: Hydraulic modular trailer price is equipped with a 485 diesel engine hydraulic power station (power source), which is the power source required for the lifting and steering of the entire modular semi trailer.

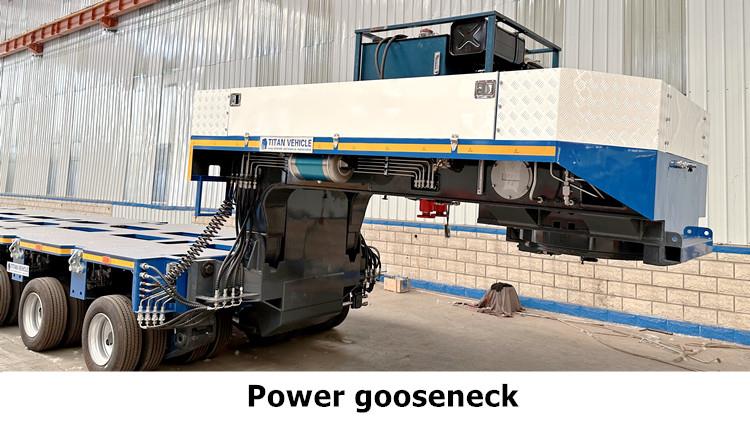

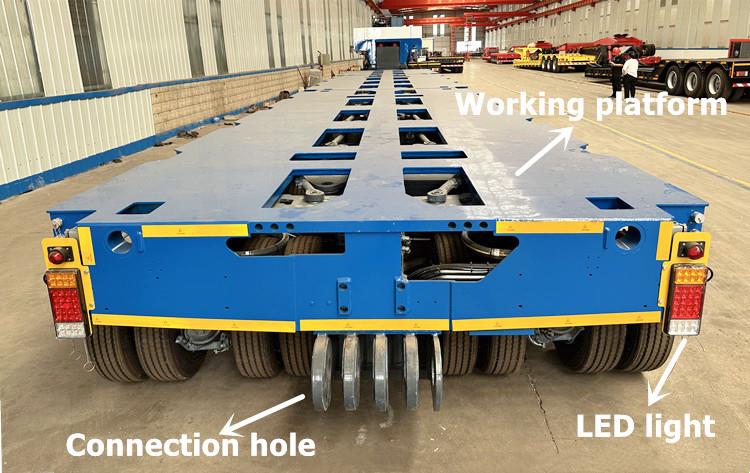

2. Power gooseneck: The gooseneck of the hydraulic modular trailer price is a detachable power gooseneck. There are corresponding connection holes at the rear of the gooseneck and the end face of the axis. Use a sling to lift the gooseneck and keep it balanced so that it corresponds to the connection hole on the end face of the axis. After docking, insert bolts to fix it.

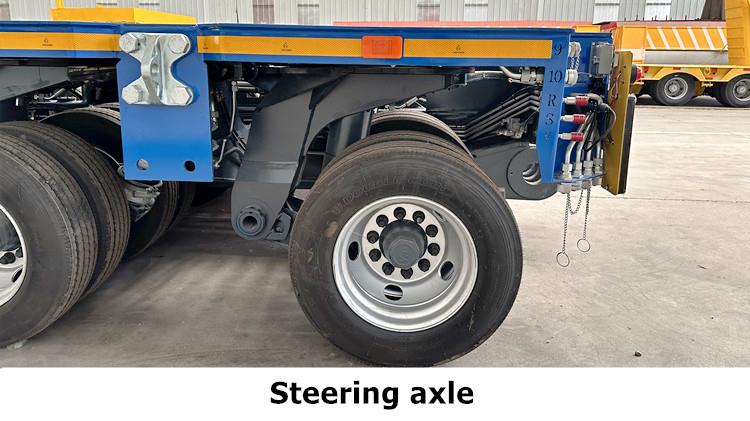

3. Steering axle: It is an axle that allows for the steering of the hydraulic modular trailer price, enabling it to turn more effectively, especially when navigating tight spaces or corners.

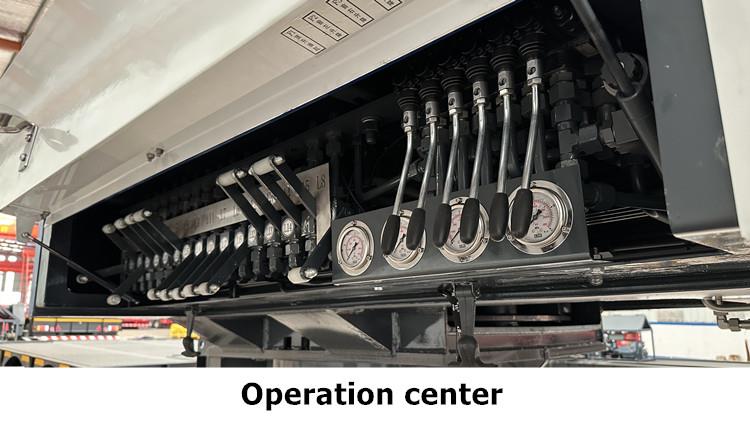

4. Hydraulic operation center: Hydraulic pumps, cylinders, and lines for lift operations. Used for raising and lowering the modular semi trailer's sections or for loading purposes.
Name: 12 hydraulic axle modular trailer

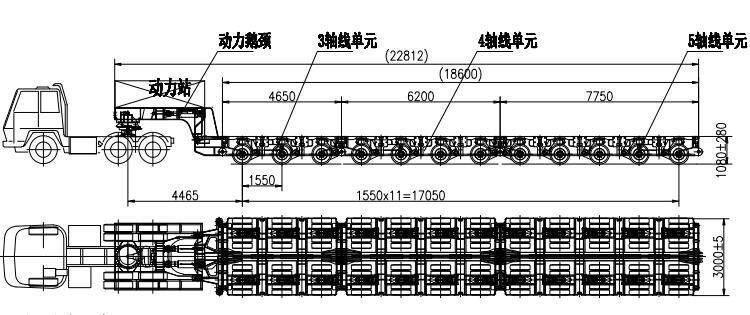

Dimension: 22812mm*3000mm*1080(+280/-280)mm
Usage: Transport bridge and heavy duty cargo
Max Payload: 275 tons
Tires: 96 units

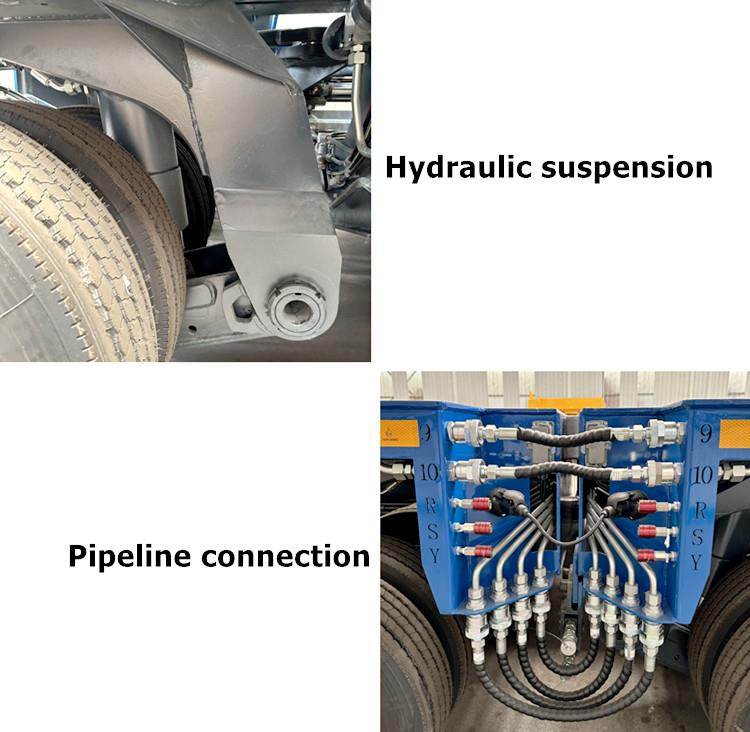

Suspension type: Hydraulic lifting steering
Landing gear: Front and rear hydraulic support cylinder
King pin: 2.00 or 3.5 inch bolt-in king pin
Factors determining the hydraulic modular trailer price
1. Size and Capacity
- Length: Larger modular semi trailers capable of carrying more significant loads tend to be more expensive.
- Load Capacity: Higher weight capacity usually means a higher hydraulic modular trailer price due to the required materials and construction.
2. Configuration
- Number of Axles: More axles generally increase stability and load capacity but also raise costs.
- Steering Axles: Modular semi trailers with steering axles may be pricier due to the added complexity.
3. Material and Build Quality
- Construction Material: Modular semi trailers made from high quality steel can be more expensive but offer increased durability.
- Design: Custom or specialized designs may raise the hydraulic modular trailer price.
4. Hydraulic and Mechanical Systems
- Hydraulic Features: Modular semi trailers equipped with hydraulic lifts or other advanced features usually cost more.
- Type of Suspension: Advanced suspension systems (like hydraulic suspension) can impact the hydraulic modular trailer price.
5. Brand and Manufacturer
- Reputation: Well-known brands with a history of reliability often command higher hydraulic modular trailer price.
- Warranty and Service: A brand offering better warranties and service might be priced higher.
6. Market Demand
- Economic Factors: Overall market demand for trailers, availability of materials, and shipping costs can influence hydraulic modular trailer price.
- Seasonal Variations: Hydraulic modular trailer price may fluctuate based on seasonal demand in specific industries.
7. Customization Options
- Add-ons: Features such as specialized decking, reinforced tie-down points, or unique color and branding can increase the cost.
- Accessories: Additional components like ramps, toolboxes, or spare tire carriers also add to the hydraulic modular trailer price.
8. Regulatory Compliance
- Safety Standards: Modular semi trailers built to meet specific safety and regulatory standards may incur higher manufacturing costs.
