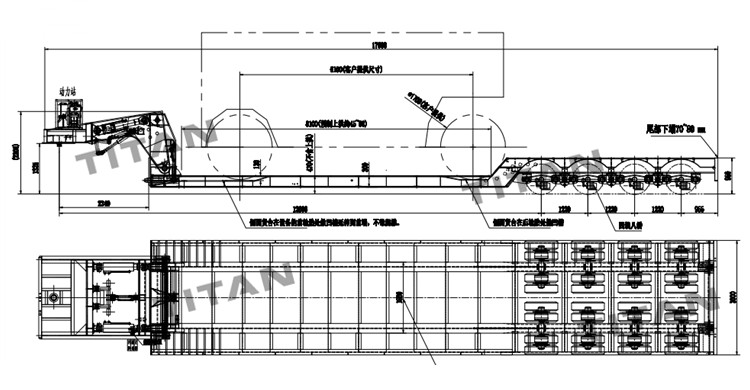

Drawing of 4 Line 8 Axle 150 Ton Lowboy Trailer
Dimension: 17000mmx3500mmx2500mm
Loading capacity(T): 150 ton
Goose neck: Removable gooseneck
Axle: 4 line 8 axle, TITAN Brand
Tire: 32 units, 12R22.5
Suspension: Mechanical suspension
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Kingpin: JOST brand 2.0 or 3.5 inch
Valve: WABCO valve
Light: LED light
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Drawing of 4 Line 8 Axle 150 Ton Lowboy Trailer
Drawing of 4 Line 8 Axle 150 Ton Lowboy Trailer

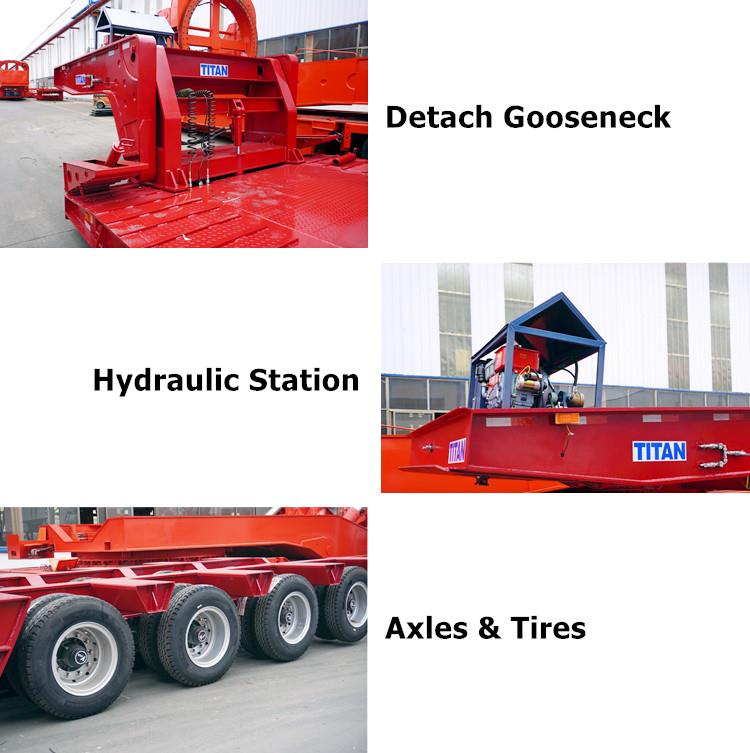

More details of 4 line 8 axle 150 ton lowboy trailer:
1. 4 Line 8 Axle Design: With 8 axles distributed in 4 lines, the 4 line 8 axle 150 ton lowboy trailer offers excellent weight distribution, allowing it to carry heavy equipment and machinery while ensuring stability.
2. Anti-slip Bottom Plate: The main flatbed area where cargo is loaded. 4 line 8 axle 150 ton lowboy trailer is reinforced to handle heavy weights and may have a non-slip surface for safety.
3. Detach Gooseneck: The gooseneck can be detached from the trailer bed, allowing for a lower loading height. This feature of 4 line 8 axle 150 ton lowboy trailer is particularly useful when loading equipment like excavators or other machinery.
